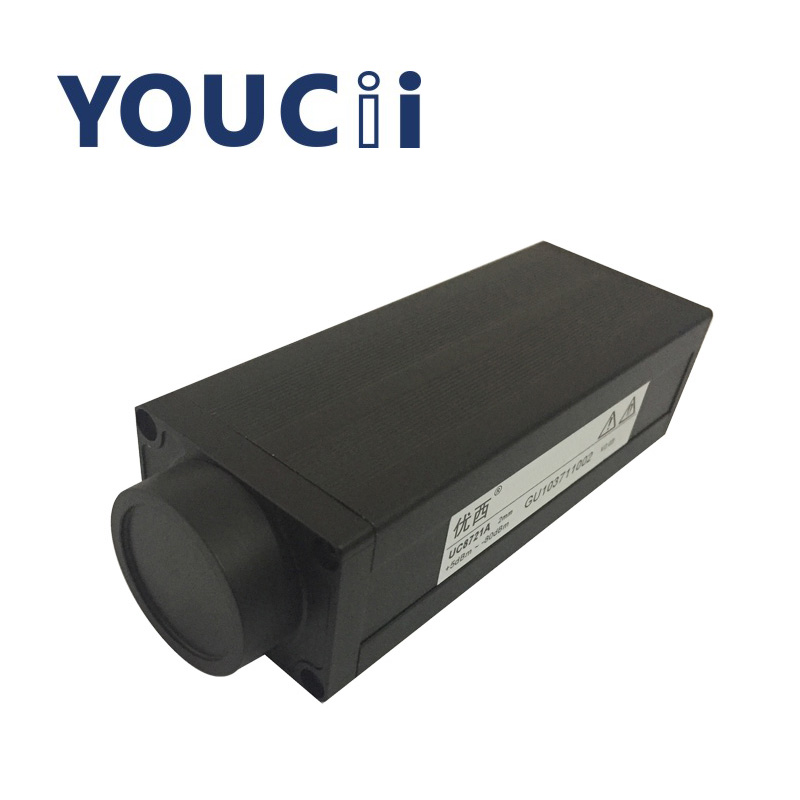

UC8721A Optical Power Meter Probe + 5 To -65dBm Highly Cost Effective
UC8721 is a USB interface optical power meter module. It’s sampling period achieves microsecond, and can collects and processes data at a high rate of speed.
The UC8721 optical power meter module provides a USB communication port connected with the PC. The operator uses its Demo program to control the UC8721, views the measurement values and sets the parameters. The UC8721 optical power mete module offers superior performance in testing DWDM Components, AWG&PLC components, optical amplifiers, and performing other general-purpose fiber optical test and measurement applications. Compared with other UC Instruments power meter modules, UC8721 features high speed sampling and compact dimension and It is especially suitable for the optical power meter sampling system which is assembled into various forms and multiple channels.
| Model # | UC8721A | UC8721B | UC8721C | UC8721D | UC8721H |
| Sensor Element | InGaAs |
| Wavelength Range | 850 ~ 1700 nm |
| Calibration wavelength | 850 / 980 / 1310 / 1510~1640nm Continuous calibration |
| Power Range (dBm) | + 5 ~ -65 | + 5 ~ -70 | + 5 ~ -80 | + 25 ~ -60 |
| Power sampling period(Rate) | 100 us(10KHz) | 10 us(100KHz) |
| Application Fiber Type | Standard SM and MM |
| optical Input Interface | Supporting bare fiber joint or FC/LC/SC Adapter |
| Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) |
| Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical values |
| Linearity (power) | ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm) |
| Return Loss | ＞40 dB |
| Communication Interface | USB | +Trig | +Trig +BNC | +Trig |
| calibration period | 2 years |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -30 ~ +80℃ |
| Dimensions | 52mm H,60 mm W,150 mm D |
| Weight | 1.0 kg |
Note: UC8721 is available in A/B/C/D/H, suitable for different application environments.
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
