Multi-Channel Optical Power Meter Screen Optional Cost-Effective

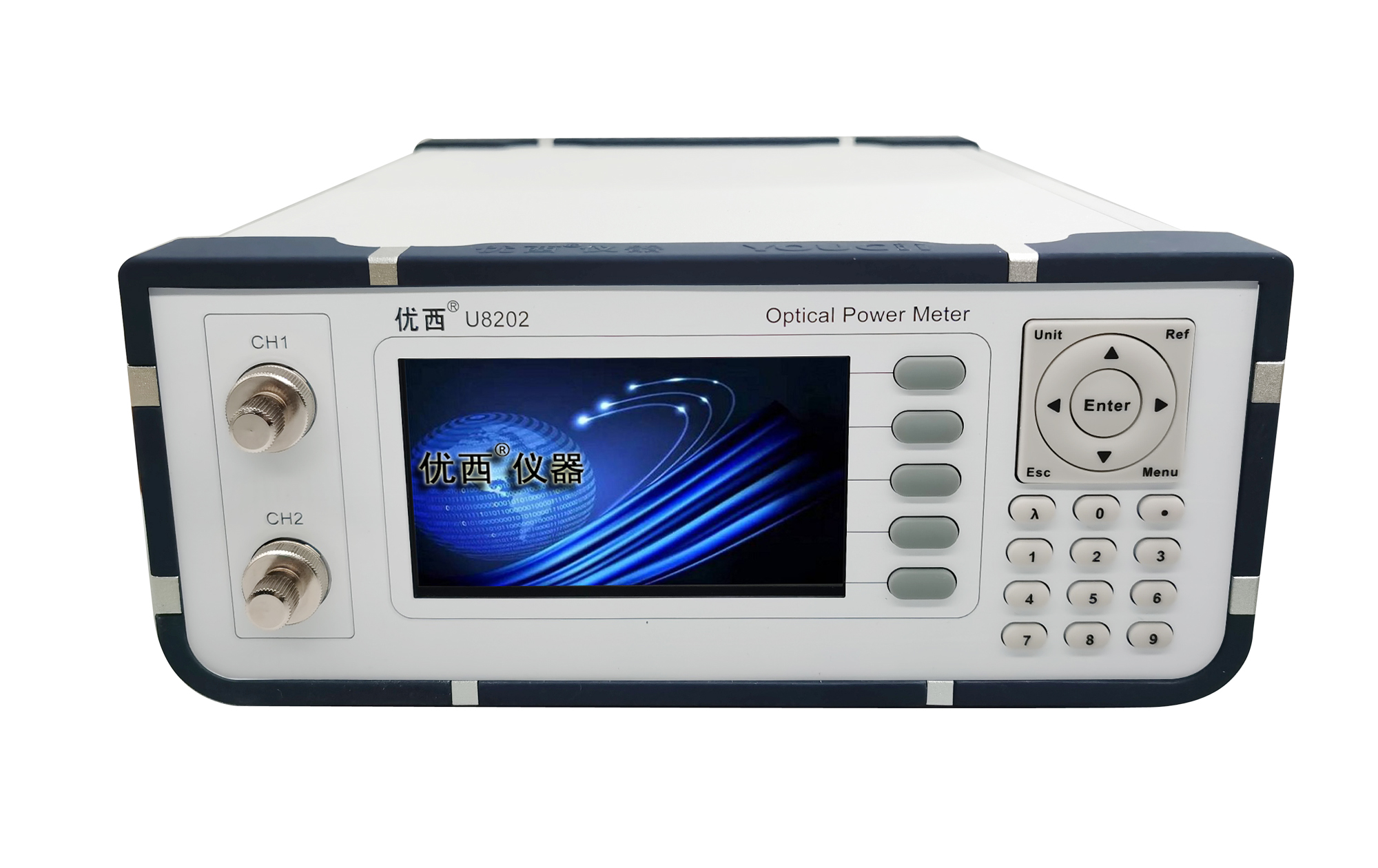

U8202 2 channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
U8202 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.
U8212 12 channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
U8212 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. We provide low power, high power, Multi-channel optical power meter options.
The difference between the U8202 and U8212 models is that the U8202 model is a power meter with a display, while the U8212 model is a power meter without a display.
Technical specification
| Model # | U8202 |
| Number of Channels | 2 |
| Power Range | +10 ~ -65dBm |
| Wavelength Range | 850 ~ 1700 nm |
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size |
| Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) |
| Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical |
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss | ＞ 40 dB |
| Operation Temperature | 0 ～ +40℃ |
| Storage Temperature | -30 ～ +80℃ |
| Recalibration Period | 2 years |
| Dimensions | 245 mm W, 105 mm H, 320 mm D |
| Weight | 2.0 kg |
