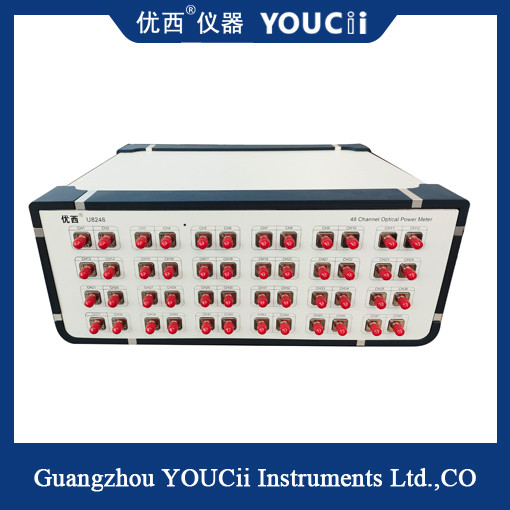

48-Channel Economic Optical Power Meter +9 ~ -66dBm

Name: 48Channel Economic Optical Power Meter 9 66dBm
Brand: YOUCii
Price: 1 USD

Brand Name : YOUCii

Model Number : U8248

Place of Origin : CHINA

Certification : CU,IOS

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Wavelength Range : 850 ~ 1700 nm

Application Fiber Type : Standard SM and MM up to 62.5 um core size

Linearity (power) : ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)

Operation Temperature : 0～ +40 ℃

Recalibration Period : 2 years

Weight : 2 Kg

Contact Now

48-Channel Economic Optical Power Meter +9 ~ -66dBm

U8248 optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.

U8248 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.

Model #	U820XH
Number of Channels	48
Power Range	+25 ~ -50dBm
Wavelength Range	850 ~ 1700 nm
Calibration Wavelength	850/980/1310/1490/1550/1610 nm
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss	＞ 40 dB
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	245 mm W, 105 mm H, 320 mm D
Weight	2.0 kg

48-Channel Economic Optical Power Meter +9 ~ -66dBm

Product Tags:

48 Channel Economic Optical Power Meter

66dBm Optical Power Meter

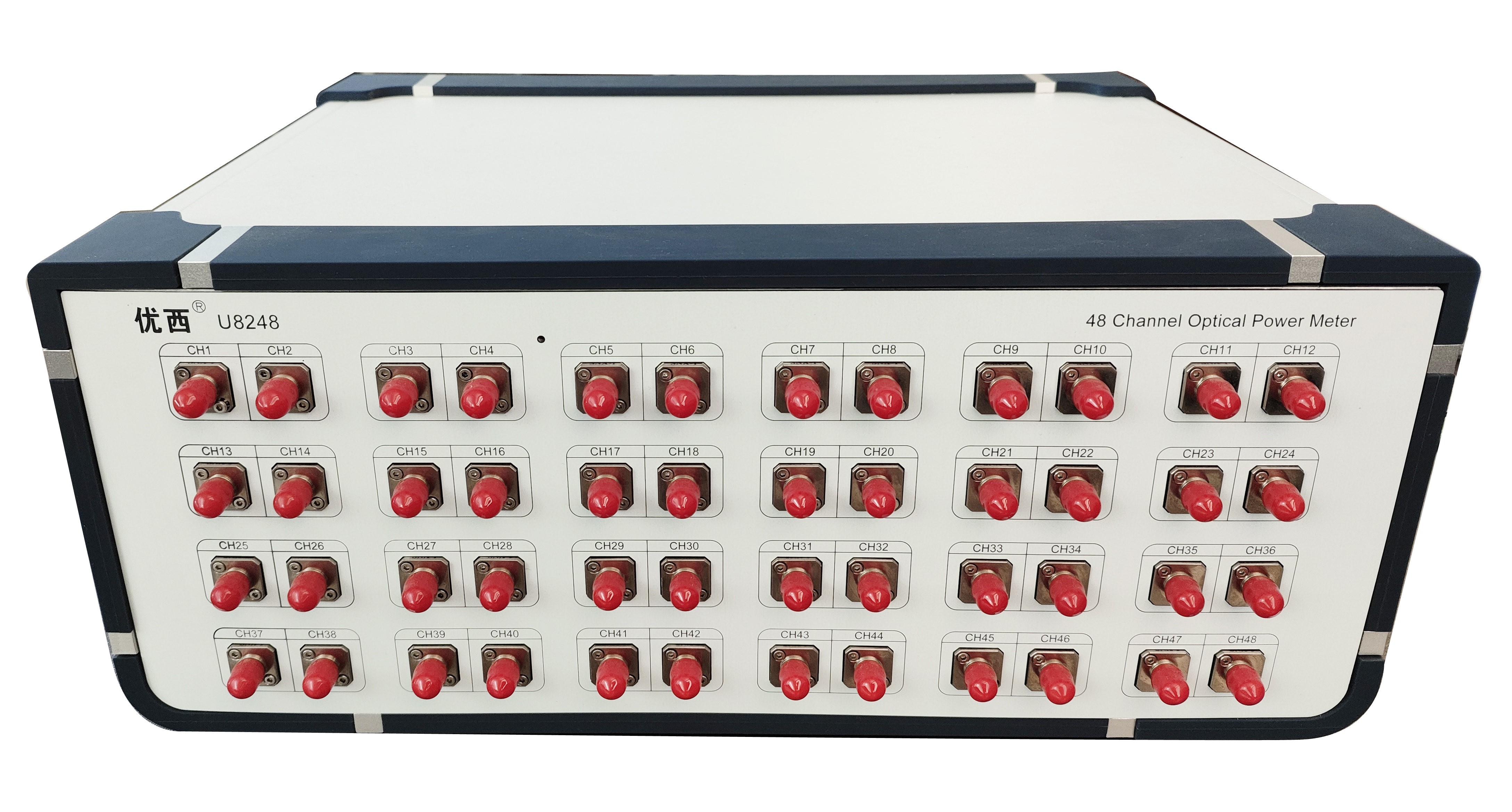

48-Channel Economic Optical Power Meter +9 ~ -66dBm Images
